Now Available In The USA

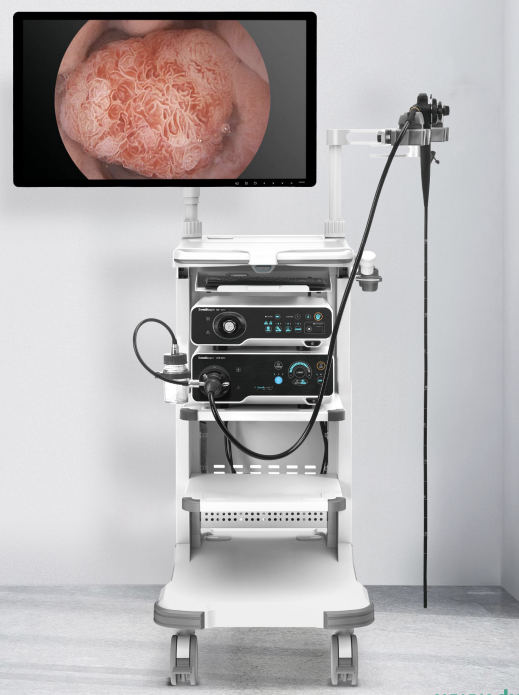

HD-550 High Definition Video Endoscopy System Advanced Visualization.
Intelligent Imaging. Designed for Everyday GI. The HD-550 Video Endoscopy System combines high-definition imaging, intelligent image enhancement, and an integrated clinical workflow into a single platform engineered for modern gastrointestinal endoscopy. Built to support everything from routine screening procedures to more complex diagnostic examinations, the HD-550 delivers the image quality, reliability, and efficiency today’s endoscopy suites demand.

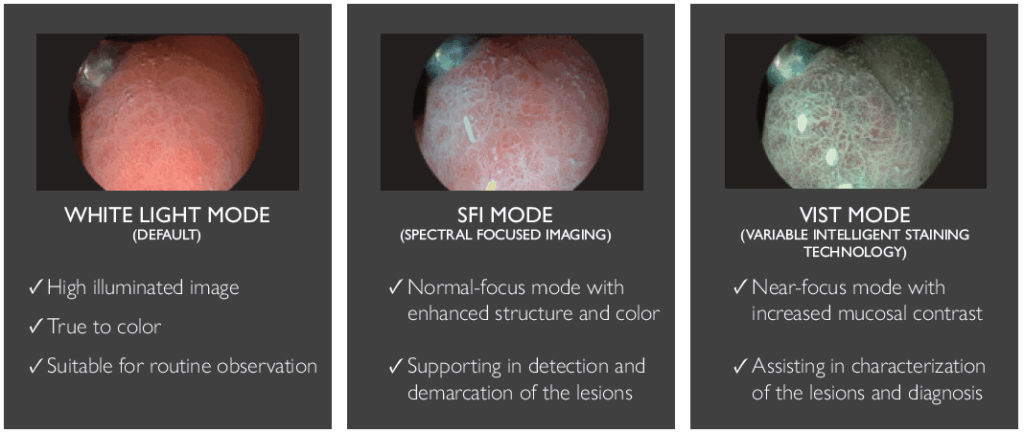

Intelligent Image Enhancement with VIST™ Versatile Intelligent Staining Technology (VIST™) enhances mucosal visualization through multiple imaging modes that can be selected instantly from the endoscope controls. Seamlessly transition between enhancement modes during a procedure without interrupting workflow, helping physicians evaluate subtle mucosal and vascular patterns with confidence.
Full HD Imaging At the heart of the HD-550 is a 2-megapixel CMOS image sensor delivering native 1080p Full HD resolution. The result is crisp, detailed visualization with accurate color reproduction and exceptional clarity throughout the gastrointestinal tract.
Integrated Clinical Workflow The HD-550 features a built-in clinical workstation with an integrated 500 GB hard drive, allowing physicians and staff to manage patient information, capture high-resolution still images, record procedure videos, and generate reports directly from the processor. By eliminating the need for additional external software or capture hardware, the system streamlines documentation and improves workflow efficiency.
Designed for Today’s Endoscopy Suite Whether performing routine screening colonoscopies or advanced diagnostic procedures, the HD-550 delivers the imaging performance, workflow integration, and clinical functionality expected in a modern GI practice—all within a cost-effective platform designed to maximize value without compromising performance.
All for tens of thousands less than legacy endoscopy brands.
Engineered for modern gastroenterology and fully FDA-cleared for clinical use in the United States.
At A Cost-Effective Price.

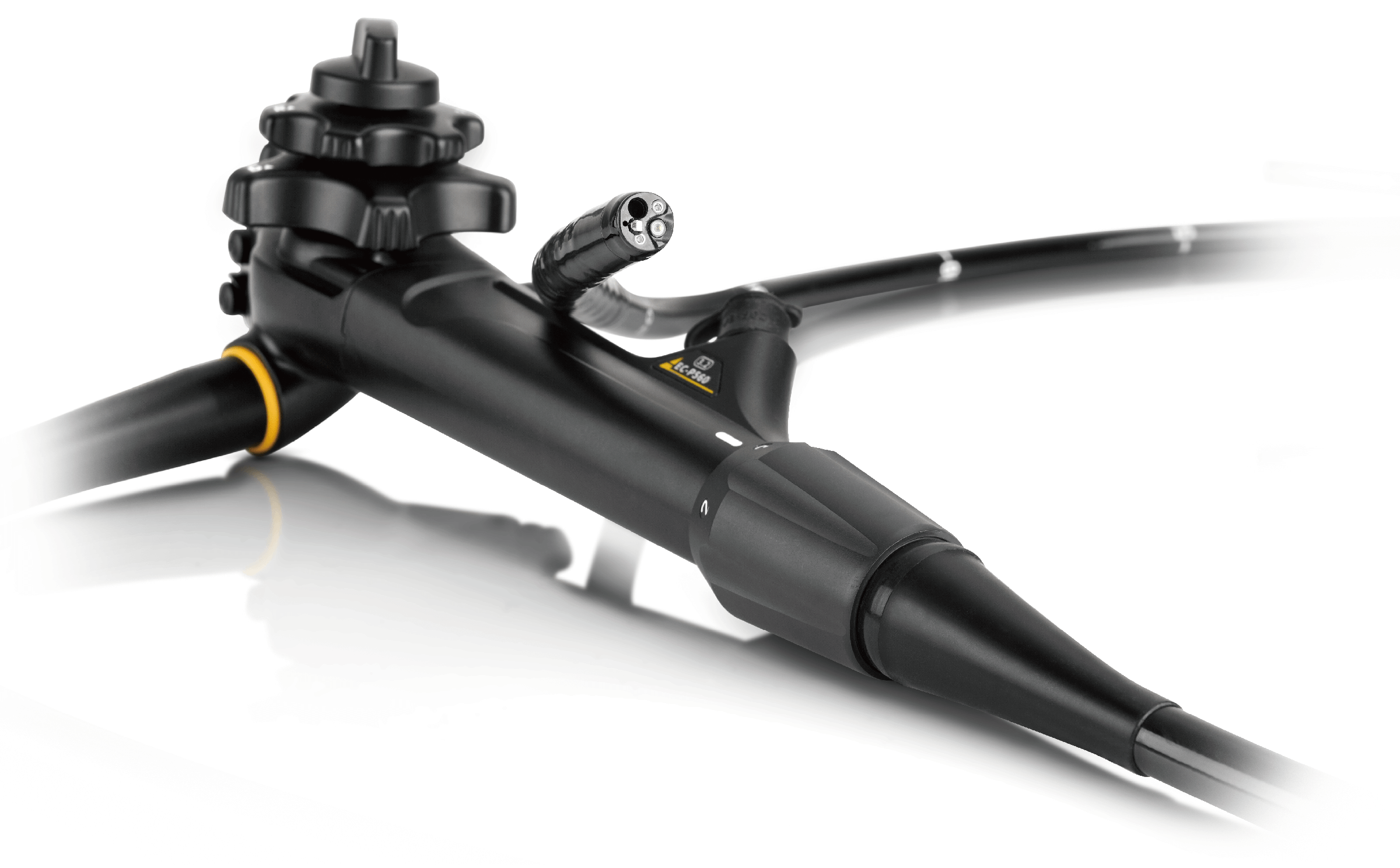

| | EC-550 | EC-550T | EC-550L/T | EC-550L |
|---|---|---|---|---|
| Distal Diameter (mm) | 12.0 | 12 | 12.9 | 12.9 |
| Insertion Tube (mm) | 12.5 | 12.5 | 12.9 | 12.9 |
| Angulation | U/D: 180° | L/R: 160° | U/D: 180° | L/R: 160° | U/D: 180° | L/R: 160° | U/D: 180° | L/R: 160° |
| Working Length | 1350 | 1700 | 1700 | 1350 |
| Field of View | 140° | 140° | 140° | 140° |
| Depth of View | 3-100mm | 3-100mm | 3-100mm | 3-100mm |
| Water Jet | Yes | Yes | Yes | Yes |

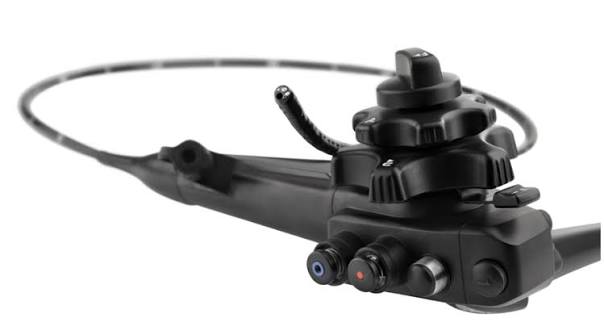

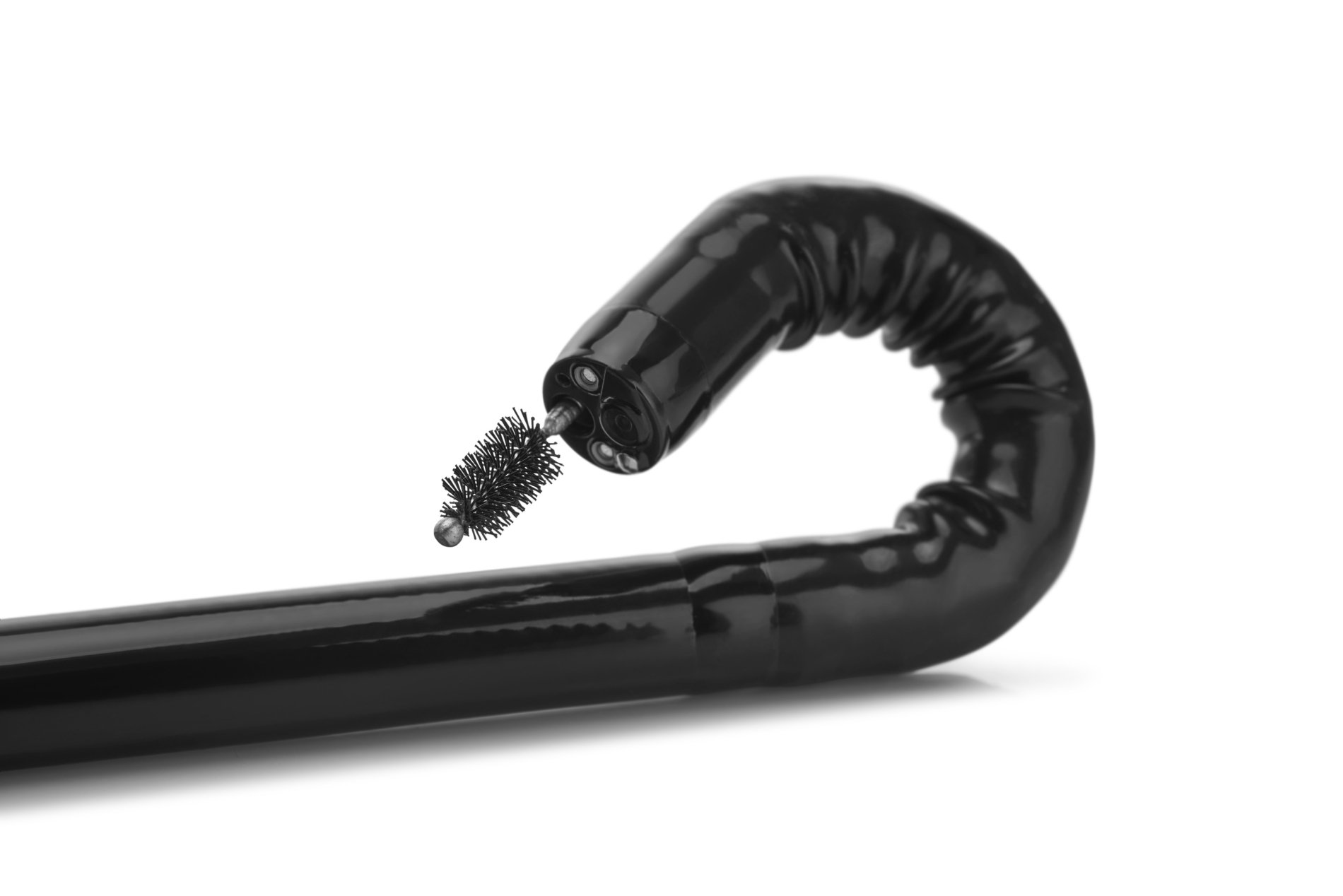

| | EG-550 | EG-550L |
|---|---|---|
| Distal Diameter (mm) | 9.3 | 9.8 |
| Insertion Tube (mm) | 9.3 | 9.8 |
| Angulation | Up 210°/Down 90° | L/R 100° | Up 210°/Down 90° | L/R 100° |
| Working Length | 1050 | 1050 |
| Field of View | 140° | 140° |
| Depth of View | 3-100mm | 3-100mm |
| Water Jet | Yes | Yes |
| | EG-UR5 |
|---|---|
| Distal Diameter (mm) | 11.3 |
| Insertion Tube (mm) | 11.5 |
| Channel (mm) | 2.2 |
| Angulation | Up 180°/Down 90° | L/R 100° |
| Working Length (mm) | 1250 |
| Field of View | 140° |
| Depth of View | 3-100mm |
| Scanning Mode | B-Mode, M-Mode, CFM, PW, THI, CHI, Elasto |
| Scanning System | Electronic, Radial |
| Scanning Angle | 360° |
| Frequency | 5-12MHz |
| HD-550 | |
|---|---|
| Output | SDI, DVI, VGA, CVBS, S-Video |
| Resolution | 1080p Full High-Definition |
| Chromo | SFI/VIST |
| Digital Zoom | 1.4x, 1.6x, 1.8x |
| Patient Data | >10k Records |
| IRIS | Peak/Avg/Auto |
| Color | Red, Blue, Chroma +15 levels |
| Air Pump | Low/Med/High |
| Brightness | Auto/Manual |
| Transillumination | 6-8 seconds |
| AGC | Yes |
| Data Management | 500GB Built-in, 5 USB-A, DICOM |
| White Balance | Auto-saved |
| Image Enhancement | Structure, Edge |
| Contrast/denoise | Low/Med/High/Auto |
| Main Lamps | 4-LED RGB Lamps |
| White Light Mode | 7000K |
| SFI/VIST | High Contrast in 2 spectra modes |
| Service Hours | 10000 (continious) |
| Hot Plugging | Yes |
*all endoscopes shown are fully FDA approved and available for clinical use in the United States.

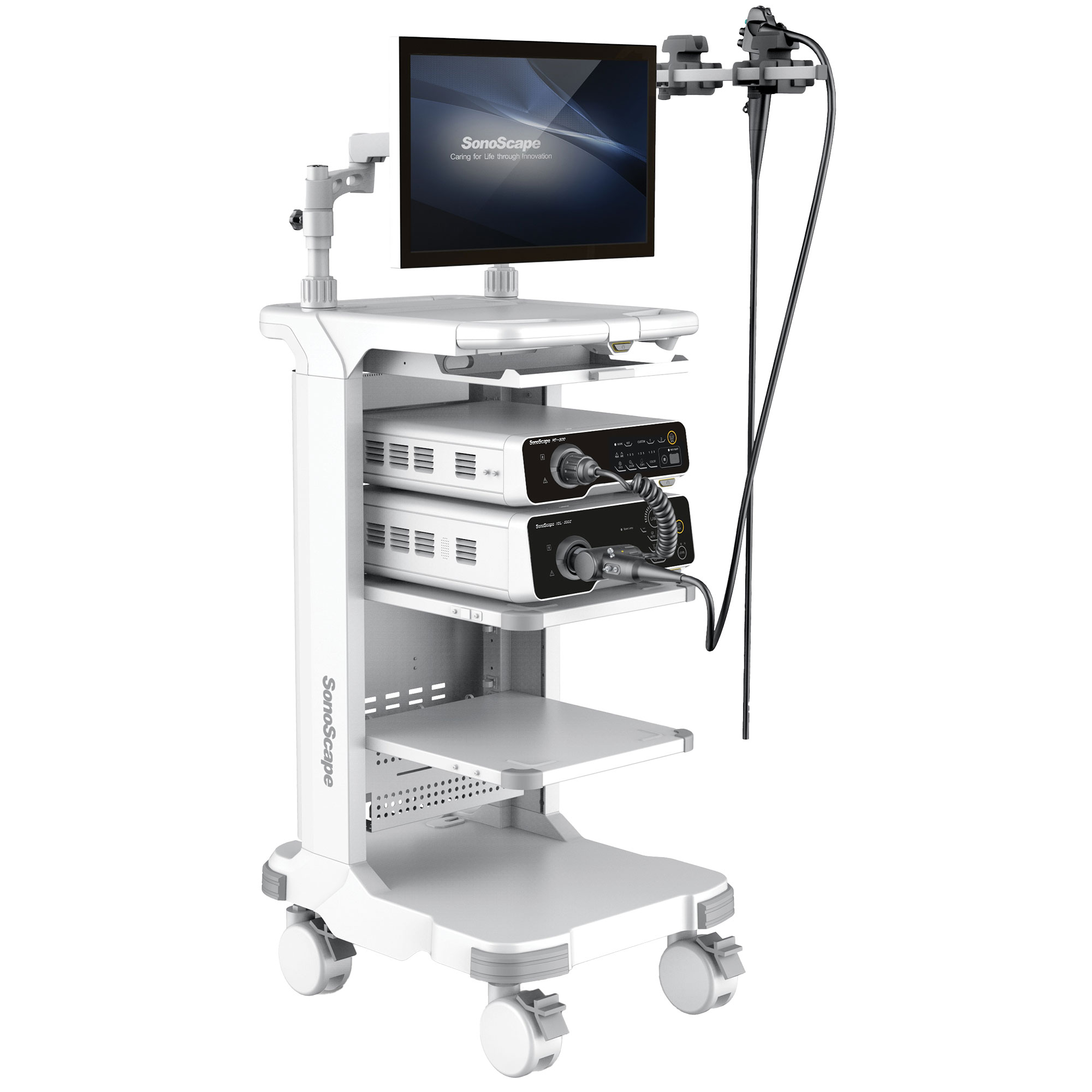

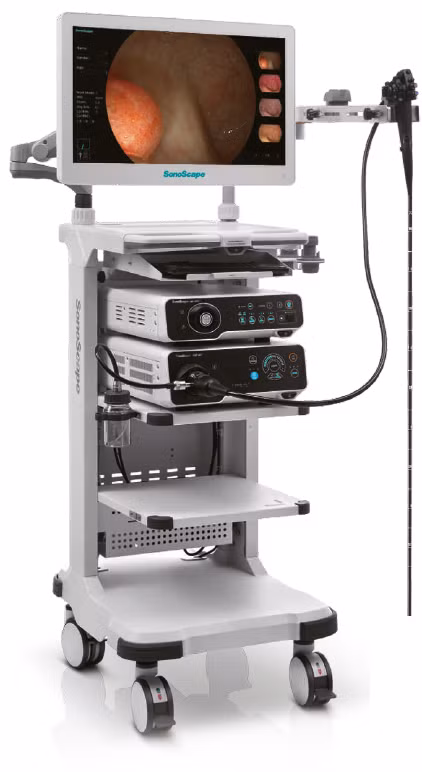

Carts
The HDT-550 with it's onboard isolation transformer is perfect for the simplified procedure room. One button power and easy manuverability.

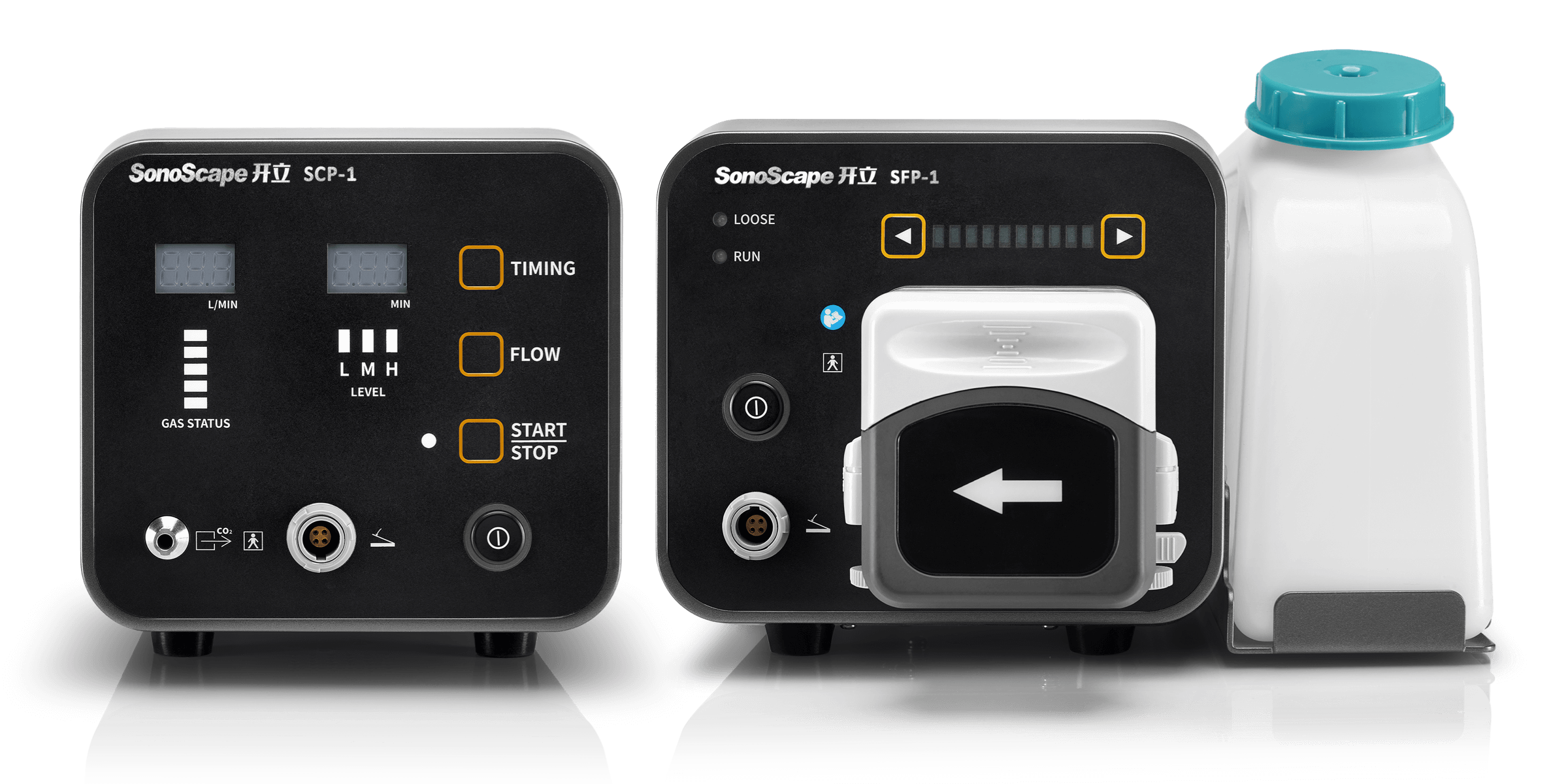

Insufflation and Irrigation
With the SCP-1 and SFP-1 Pro, your endoscopy system can complete today's protocols with Co2 for a more efficient colon cancer screening. Coupled with the irrigator providing fantastic clearance in the field of view.
Image Management
On-board capture management includes native resolution capture of videos and still images on standard USB-A media. In DICOM or standard formats. Compatible on any HIPAA compliant device. Or coupled with cloud based image management systems.

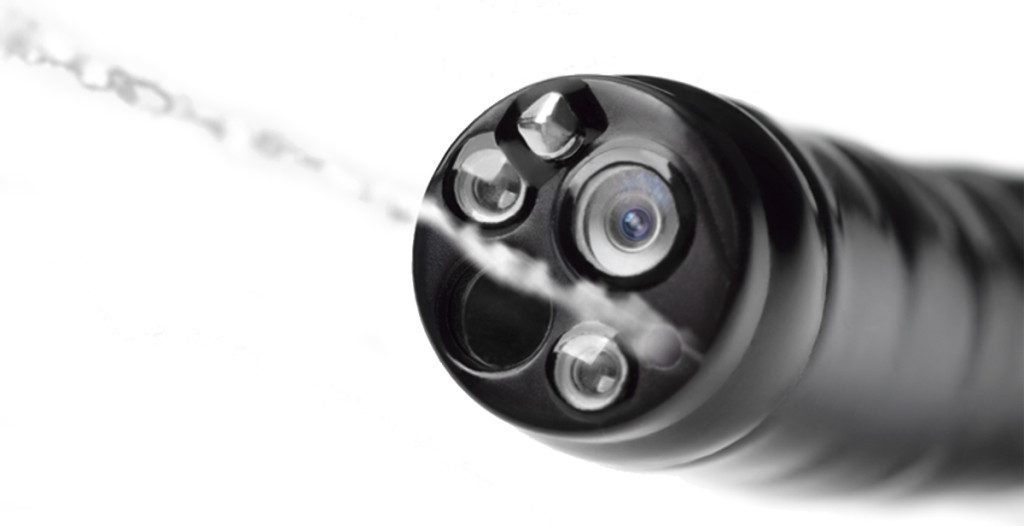

Forward Water Jet
Every scope available in the core GI portfolio offers dedicated water channels to manage proper irrigation and cleansing of the mucosal surface for clearer observation of the field of view. Coupled with our SFP-1 Pro for seamless integration.

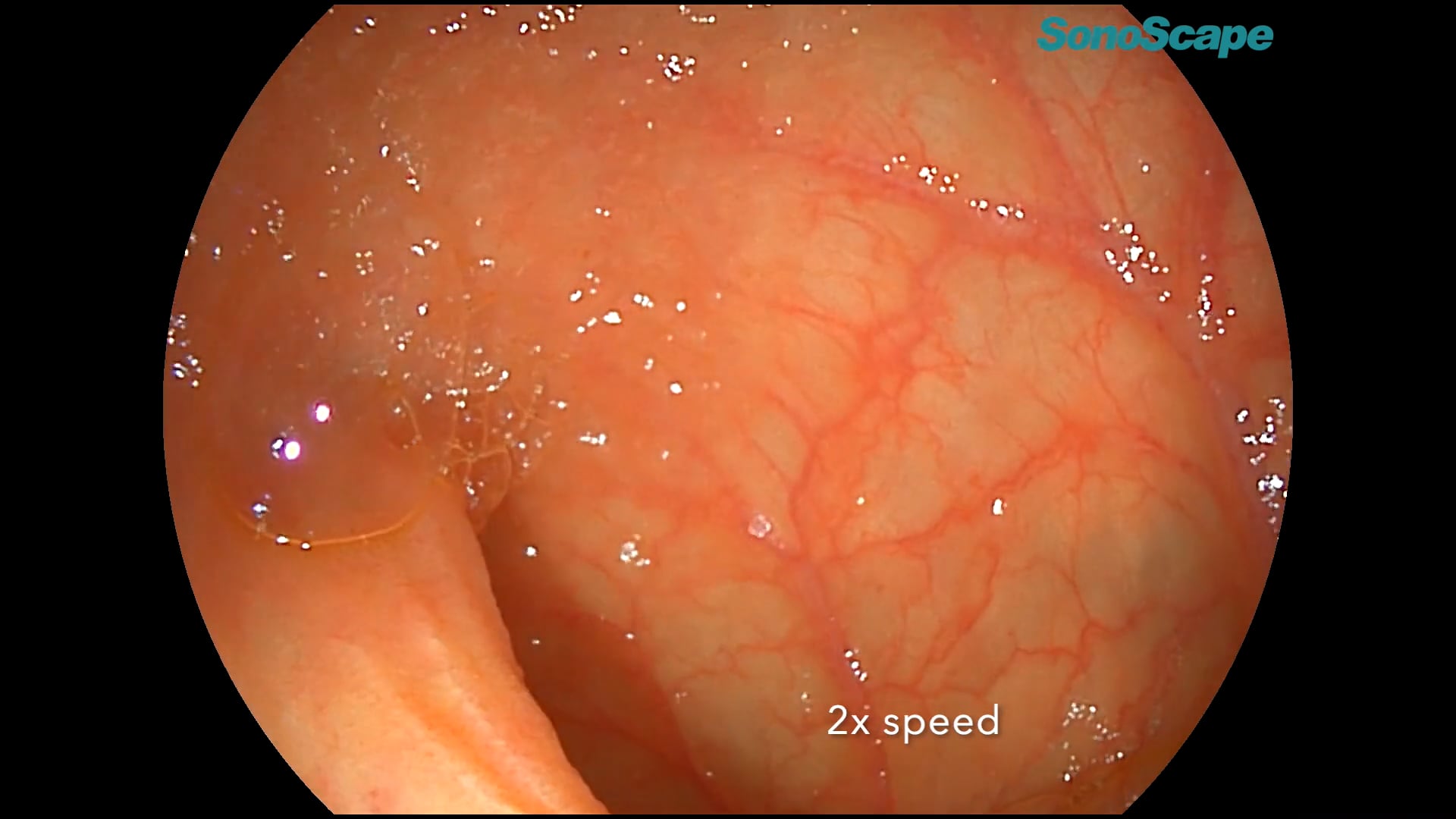

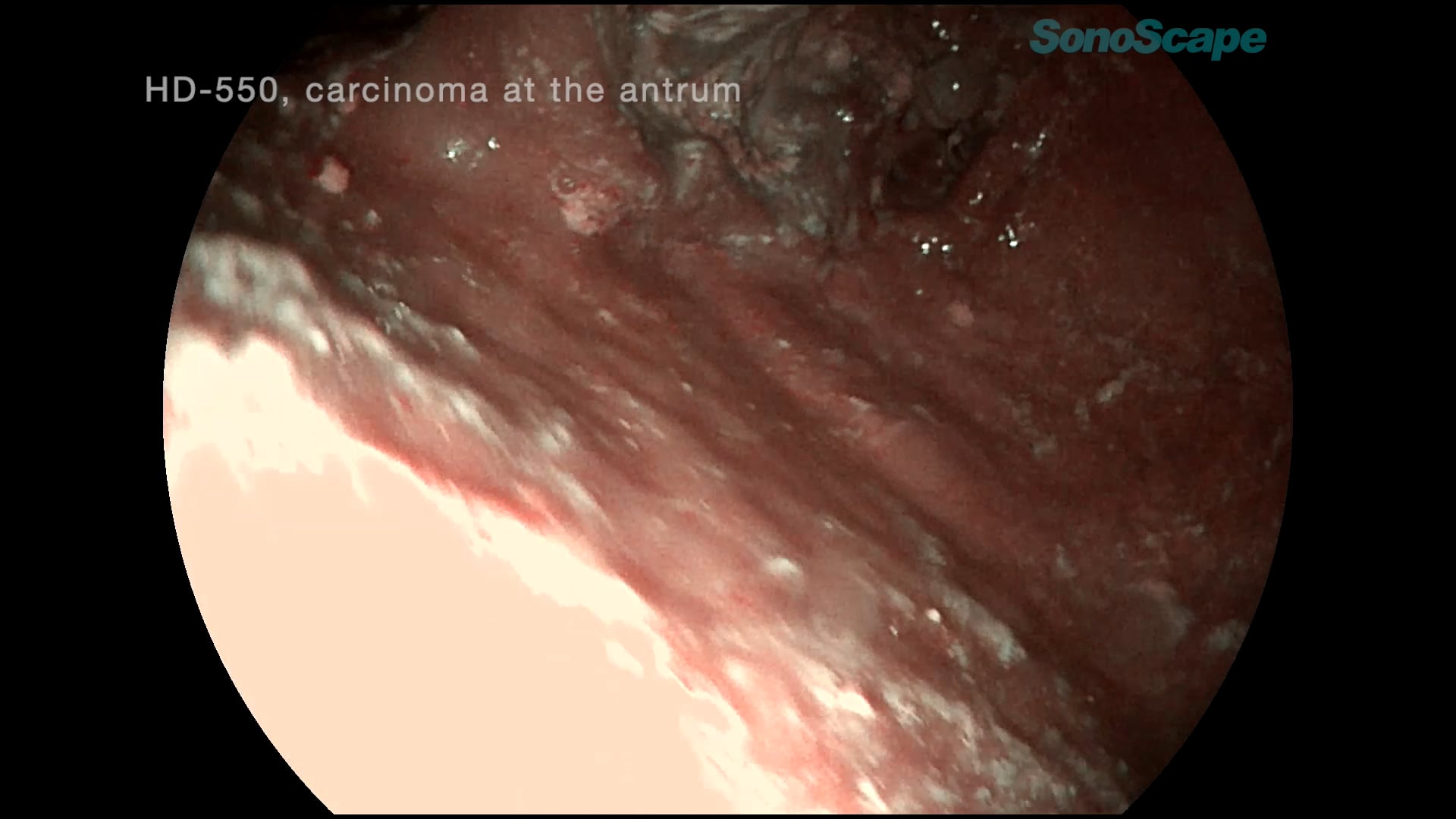

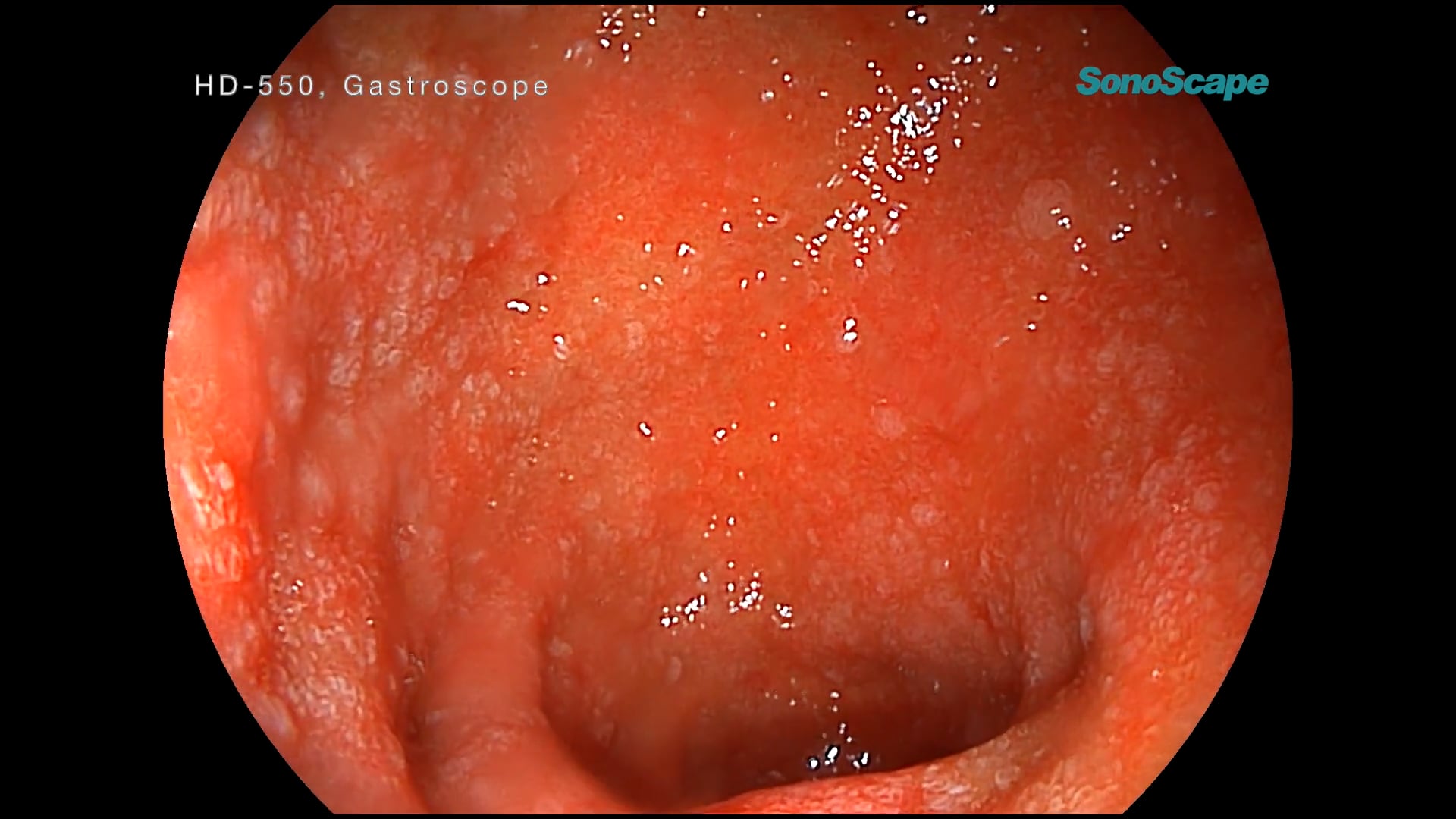

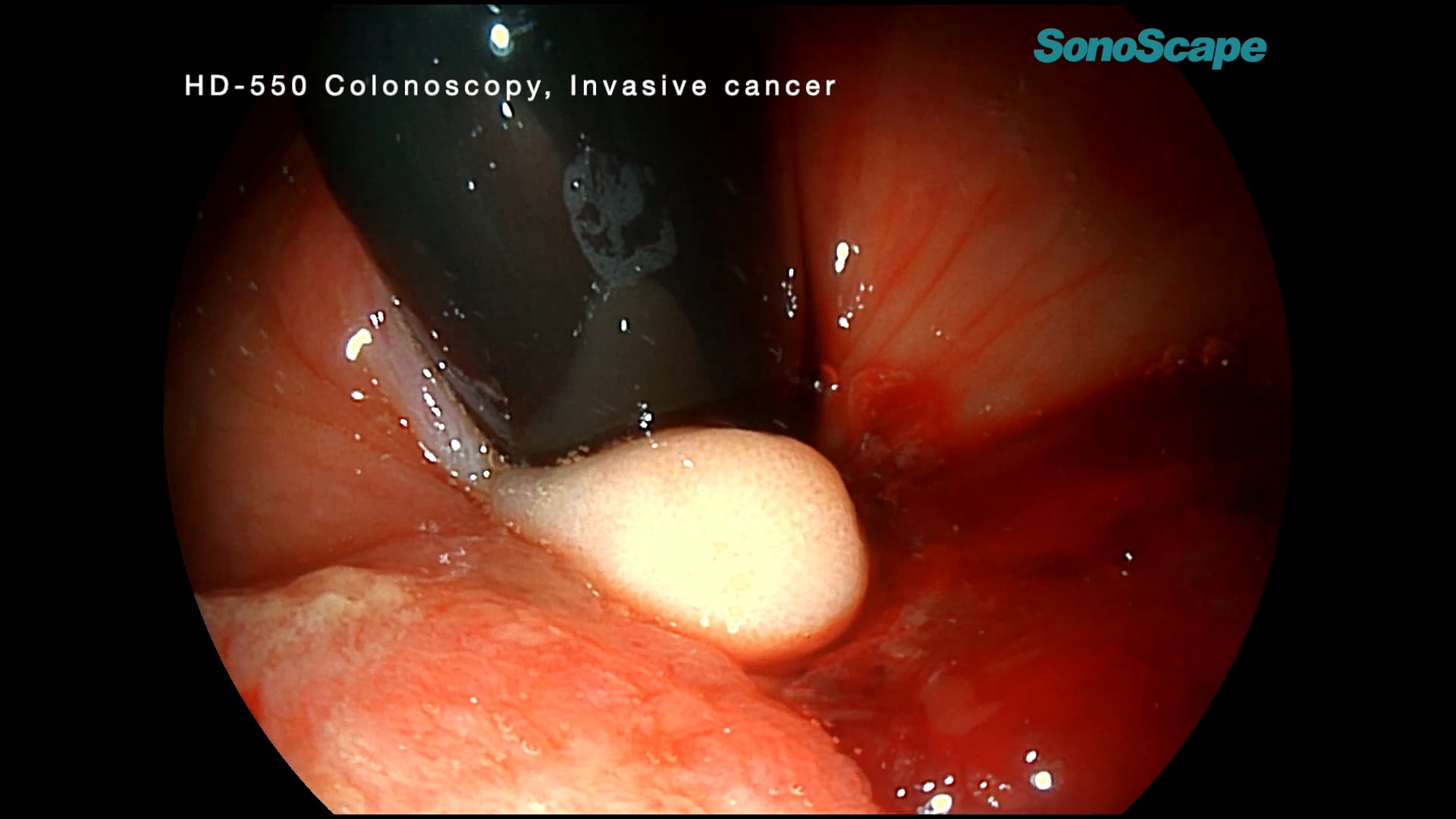

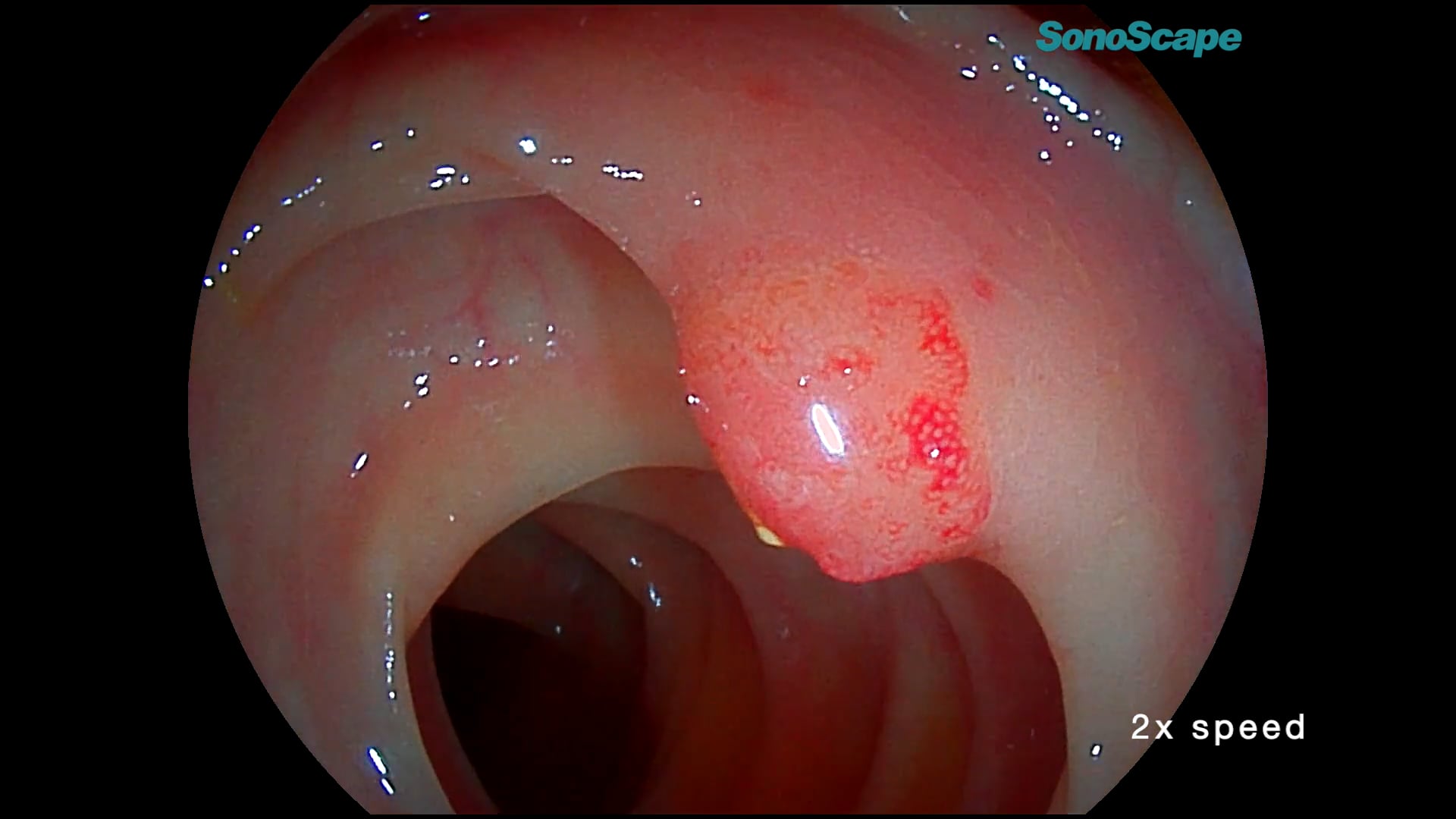

See For Yourself...
EUS Ecosystem
One of only two manufacturers with end to end EUS components

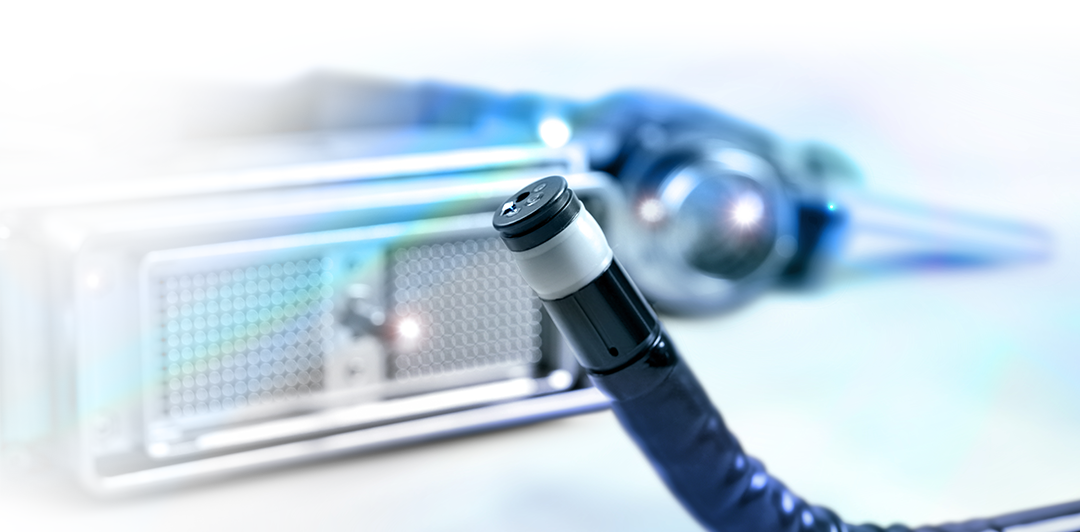

EG-UR5T Endoscope
Radial probe gastroscopes with high-definition images and detail like you've never seen before in therapeutic endoscopy.

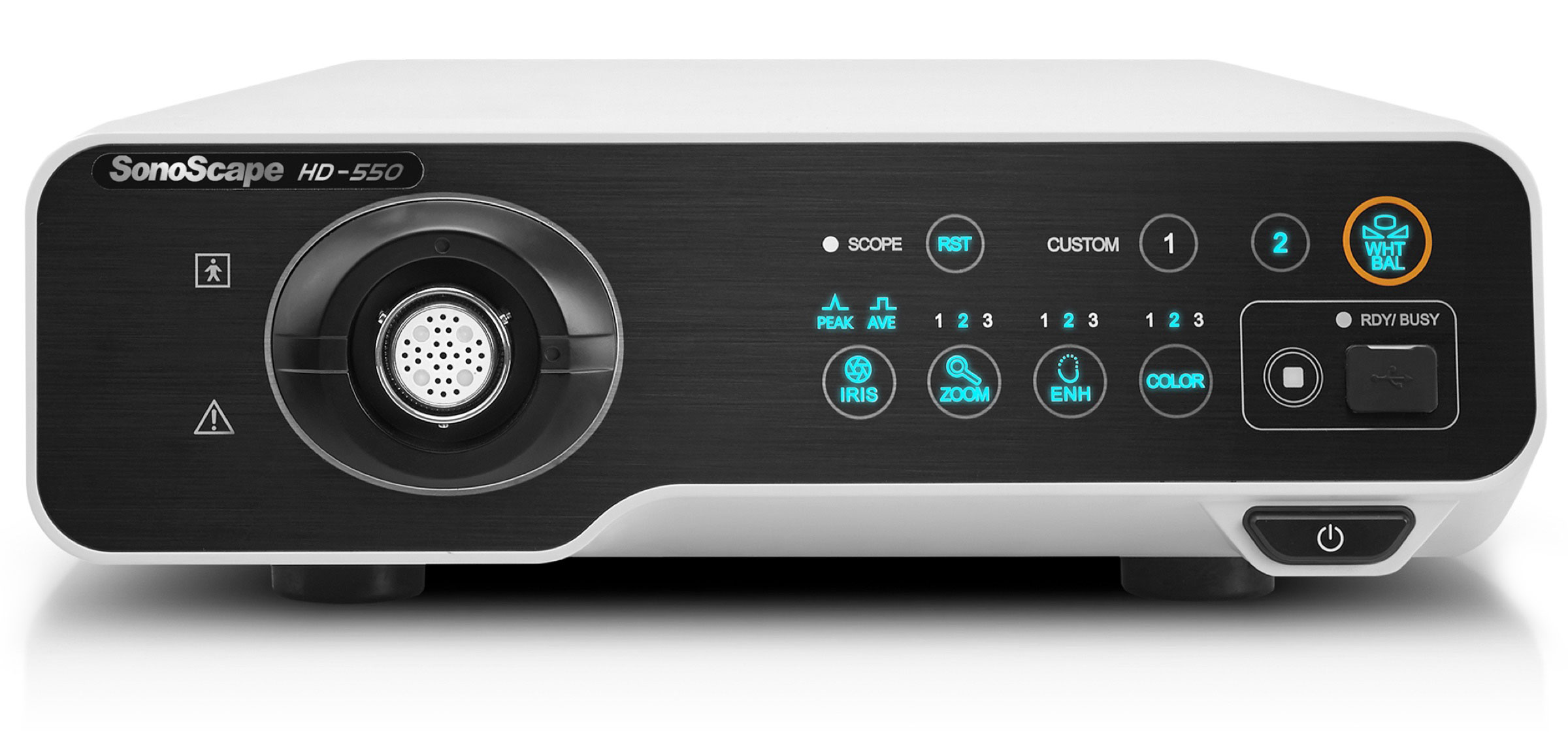

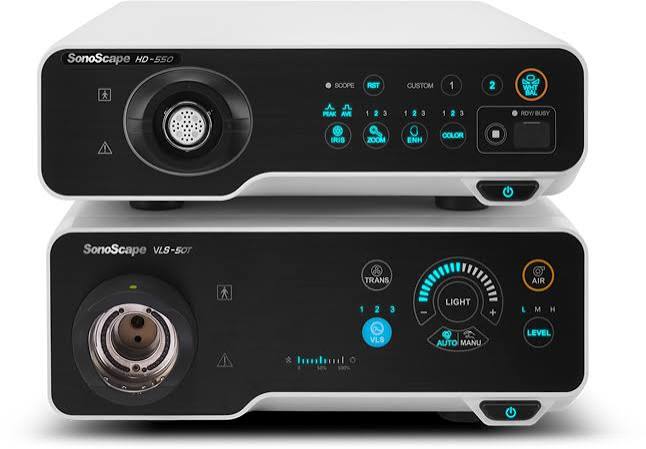

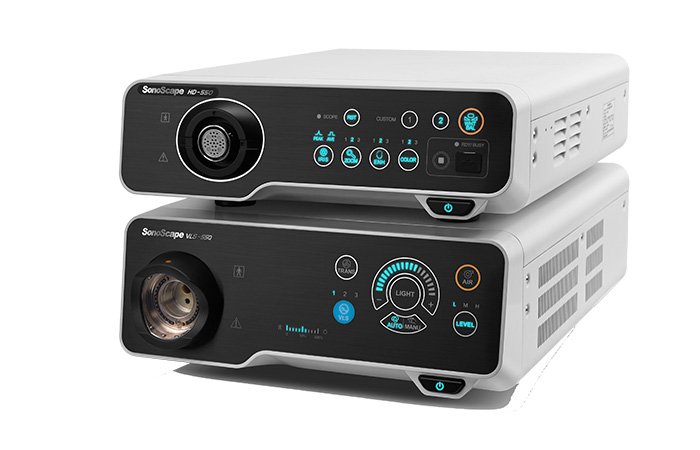

HD-550 Video Processor
The video system hub manages all the data in and out of your field of view. Plus it's managing the patient data and capture during the procedure.

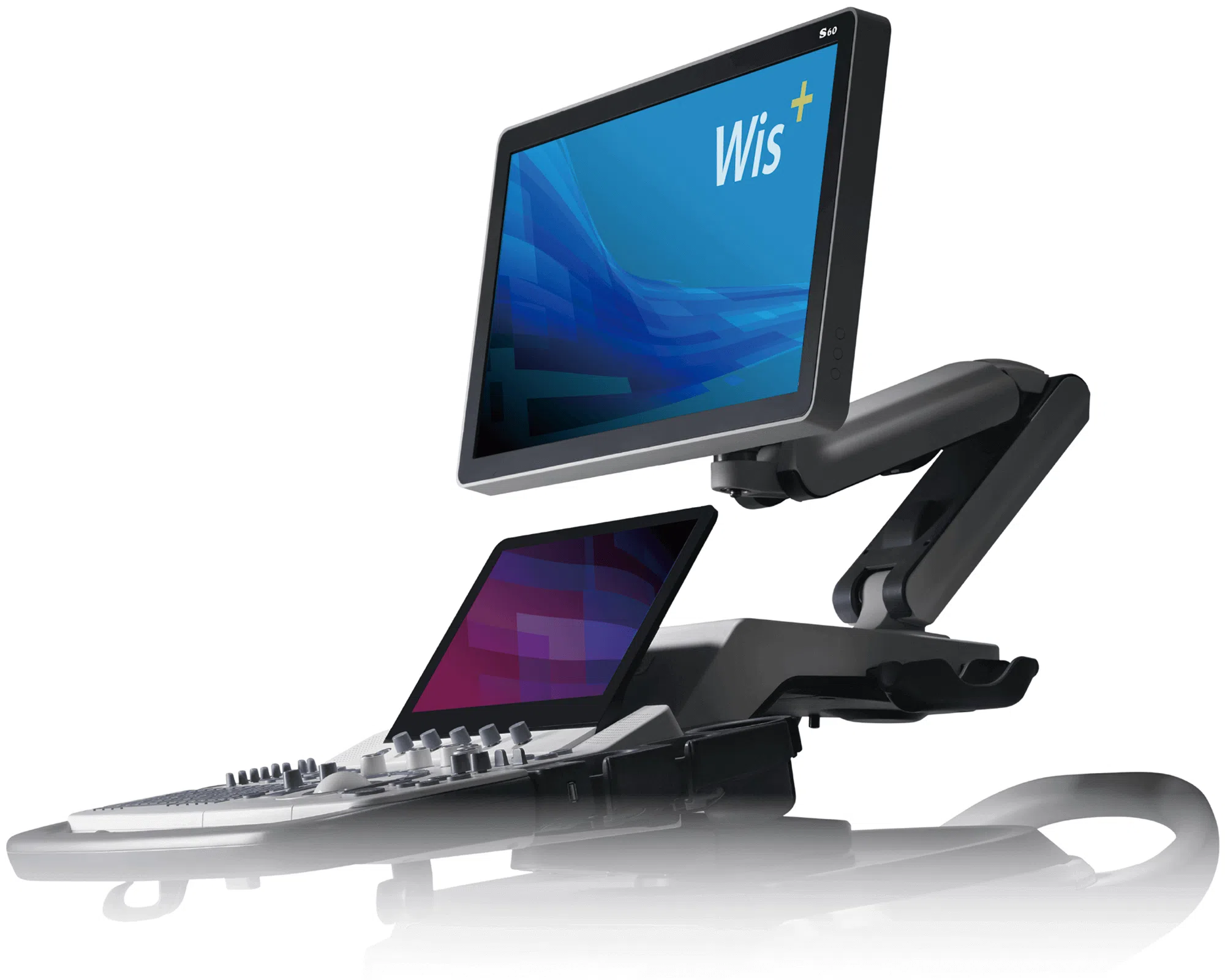

S60 Ultrasound Console
The SonoScape S60 with Wis+, uses deep-learning algorithms to learn and evolve like human brain. With this intelligent platform designed to actively adapt and analyze images, exams are easy to perform and a new level of workflow is achieved.
Endoscopes As A Service (EaaS)
Endoscopy as a Service (EaaS) aligns the cost of endoscopy with the delivery of care. By replacing large upfront capital investments with a predictable per-procedure fee, healthcare organizations reduce financial risk, improve cash flow, and eliminate the uncertainty of equipment ownership. Comprehensive service, preventive maintenance, repairs, replacement equipment, and scheduled technology upgrades are included, ensuring consistent clinical performance without the burden of unexpected expenses or aging infrastructure. The result is a modern, scalable endoscopy program with predictable economics, maximum equipment availability, and a lower total cost of ownership. Volume metrics apply in order to qualify. No discounting is offered on any EaaS agreement. Rate guarantee is good for the term of the agreement.
- Reduce capital.
- Eliminate repair risk.
- Increase uptime.
- Pay only when you perform procedures.
- Always have current technology.
- Align equipment costs with patient volume.
- Turn endoscopy from a depreciating asset into a predictable operating expense.
It’s a better model for endoscopy in high-volume facilities.
Turnkey equipment configurations and full IT compatibility with ongoing maintenance and support built-in to a single, capped cost per procedure. New equipment every year, no surprise downtime and on-site support available to those who qualify. A change that is good for endoscopy.
Predictable Costs = Higher Revenue

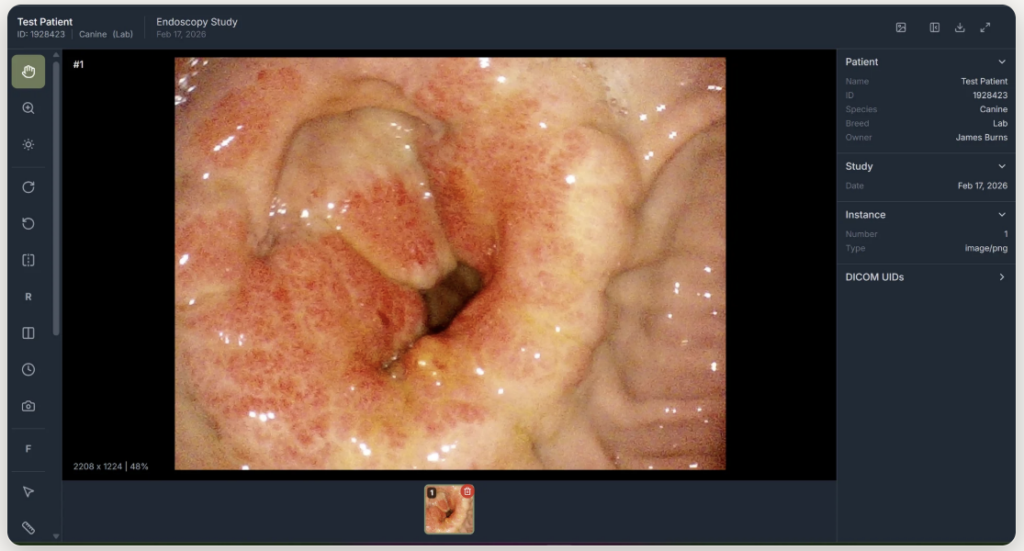

Cloud-Based PACS for Modern Endoscopy Purpose-Built for Gastroenterology
Move beyond traditional on-premises image archives with a cloud-native PACS designed specifically for endoscopy. Capture, organize, store, and retrieve high-resolution procedure images and videos through a secure, scalable platform built to support the clinical workflow of today’s endoscopy practice.
Fully integrated with SonoScape endoscopy systems, the platform streamlines image and video capture while providing immediate access to studies, reports, and patient records through secure desktop applications or web-based access for authorized users.
Complete Procedure Documentation
From pre-procedure documentation through post-procedure reporting, every stage of the patient’s endoscopic journey can be securely archived within a single platform. Multi-modality media support allows practices to incorporate images and videos from a variety of compatible sources, helping create a comprehensive patient record.
Integrated Reporting
An integrated report-writing solution enables physicians to generate standardized procedure reports without requiring separate reporting software. Reports, images, and videos remain linked within the patient’s examination record, improving workflow and documentation efficiency.
Secure, Scalable Cloud Infrastructure
Designed around modern cloud architecture, the platform eliminates the need for large on-site image archive infrastructure while providing flexible storage options that scale with your practice. Healthcare-grade security, encrypted data transmission, user authentication, and comprehensive audit capabilities help organizations support their HIPAA compliance programs and data governance requirements.
Vendor-Neutral Image Management
As a vendor-neutral archive (VNA), the platform preserves existing studies regardless of the original imaging manufacturer. Whether your facility currently uses SonoScape or another endoscopy platform, historical images and videos remain available through a unified archive.
Professional migration services are available to securely transfer existing PACS databases while preserving study integrity and patient metadata, minimizing disruption during system implementation.
Designed to Integrate
The platform is designed to integrate with many leading electronic medical record (EMR) and healthcare information systems, helping practices streamline documentation and reduce duplicate data entry. Integration capabilities vary by EMR platform and deployment environment.
Lower Infrastructure Burden
By shifting image management to a secure cloud environment, healthcare organizations can reduce the complexity associated with maintaining large on-premises storage infrastructure, while benefiting from a platform that grows alongside clinical demand.
DEMO?
Our US Based Team Will Work With You Through The Evaluation Process
